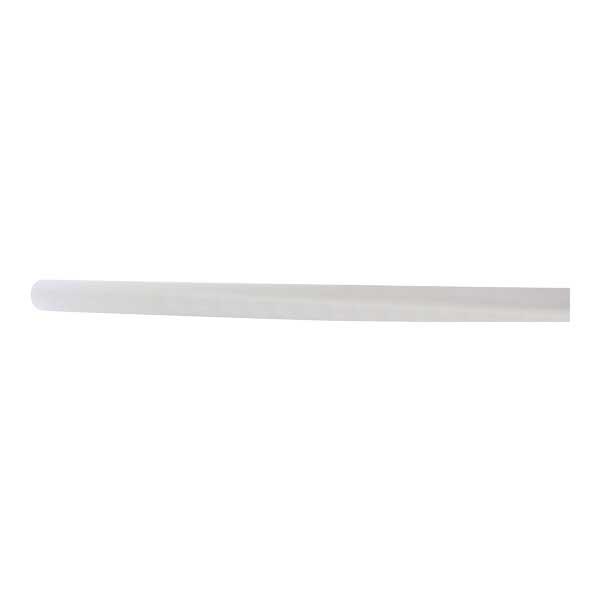

Uponor AquaPEX® F1930750 Tubing, 3/4 in Nominal, 0.671 in ID x 7/8 in OD x 20 ft Straight L, White, PEX

WIRAP20I MFG #: F1930750
  • Color: White
  • Inside Diameter: 0.671 in
  • Length: 20 ft Straight
  • Manufacturer Name: Uponor
  • Nominal Size: 3/4 in
  • Outside Diameter: 7/8 in
  • Temperature Rating: 73.4 to 200 deg F
  • Working Pressure: 80 to 160 psi
Uponor AquaPEX® tubing is used in hot and cold water distribution systems and AquaSAFE™ residential fire safety systems. Uponor AquaPEX® tubing is suitable for use in hydronic heating applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the tubing. Uponor AquaPEX® tubing coils and straight lengths come in red, white and blue for potable-water applications, and purple for water-reclamation applications. Uponor AquaPEX® tubing is manufactured and listed to ASTM F876 and F877 and CSA B137.5, certified to NSF Standards 14 and 61 and listed by the Hydrostatic Stress Board of PPI at 200 deg F at 80psi, 180 deg F at 100psi and 73.4 deg F at 160psi. Uponor AquaPEX® white tubing (1/2", 3/4", 1" and 1-1/4" only) is also listed to UL 1821 and ULC/ORD C199P and carries an additional rating of 120 deg F at 130psi.
  • Features and More

Features

  • Cross linked polyethylene PEX-A engel method PEX 5106
  • 1.1 in at 10 deg F of 100 ft linear expansion rate

Application

  • PEX-A Plumbing System
  • AquaSAFE™ Residential Fire Safety System
  • Hydronic Piping System
  • Radiant Heating and Cooling System

Standards/Approvals/Certifications

  • ANSI/NSF 14/61
  • ASTM F876/F-877/F-1960/F-2023/E-84
  • ASTM E119/UL 263
  • ASTM E814/ULC S115
  • AWWA C904
  • CAN/ULC S101
  • CAN/ULC S102.2
  • CSA B137.5/B214
